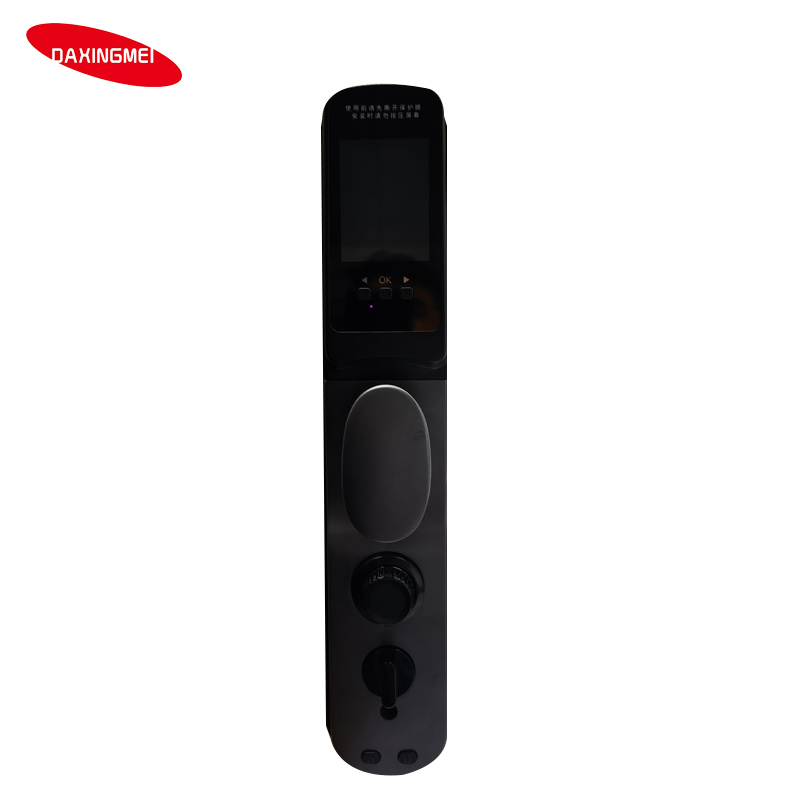

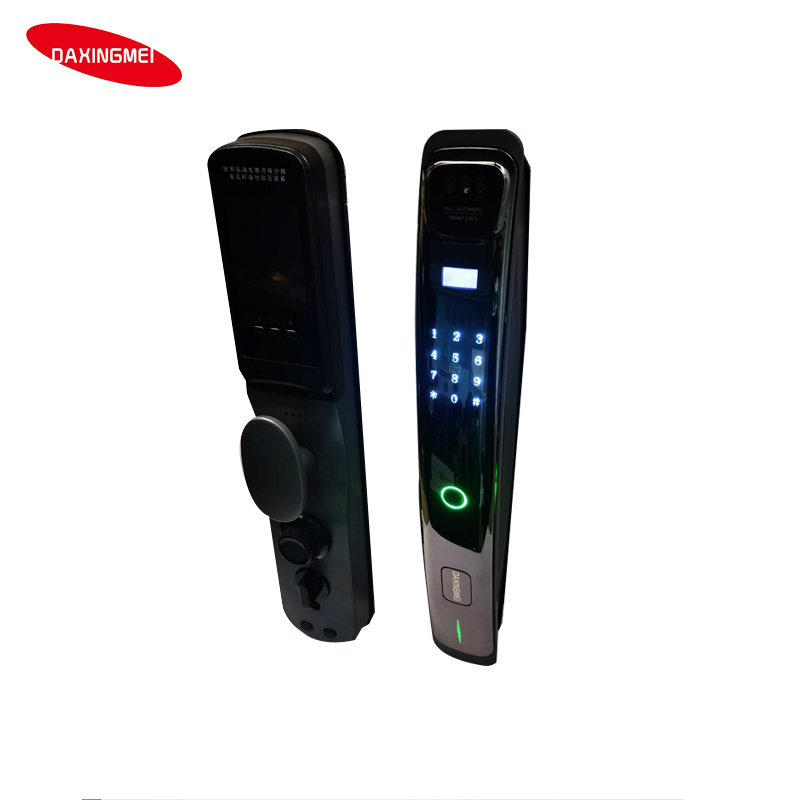

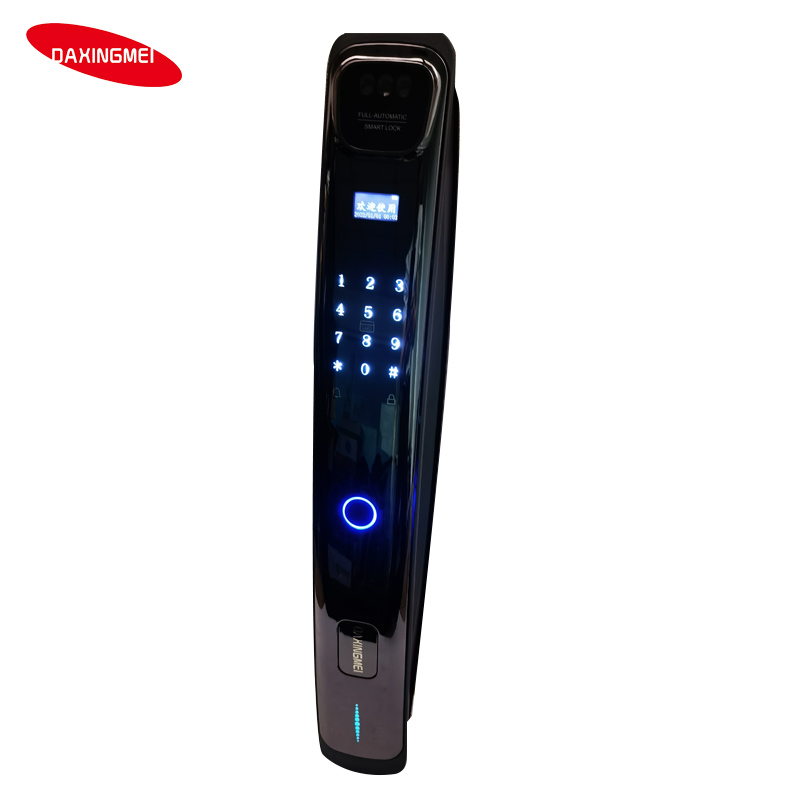

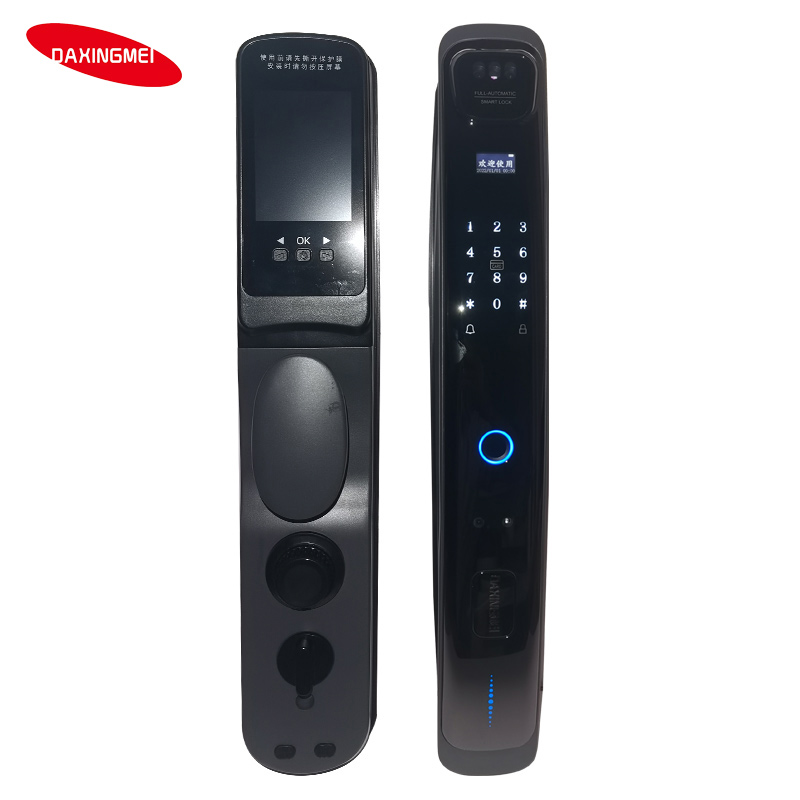

3D Face Recognition Smart Fingerprint Password Electronic Lock

Operating voltage

7.2V-8.4v, 7.2v low voltage alarm

Working current

Average less than 200mA

Sleep current

Less than 70-80uA

Working power supply

8.4V lithium battery

Unlocking time

Less than 1 second

Built-in functions

Fingerprint unlocking, password unlocking, card unlocking, text display, temporary unlocking password

UI Programming

Support adding LOGO

Emergency power supply

5v power bank

Antistatic parameters

Contact discharge ±8KV, air discharge ±15KV

Work Environment

Temperature: -20℃-+60℃, relative humidity: 20%RH-90%RH

Virtual password

The maximum input length is 64 characters.

Fingerprint collection head

Capacitive acquisition head

Password

12 keys, 0-9 number keys and * key # key

Touch operation mode

Capacitive touch sensing

Supported card types

Class A card 13.56nz

Display language

Simplified Chinese

Display

0.96-inch OLED screen

Back panel buttons

Lock key Unlock key (initialization)
